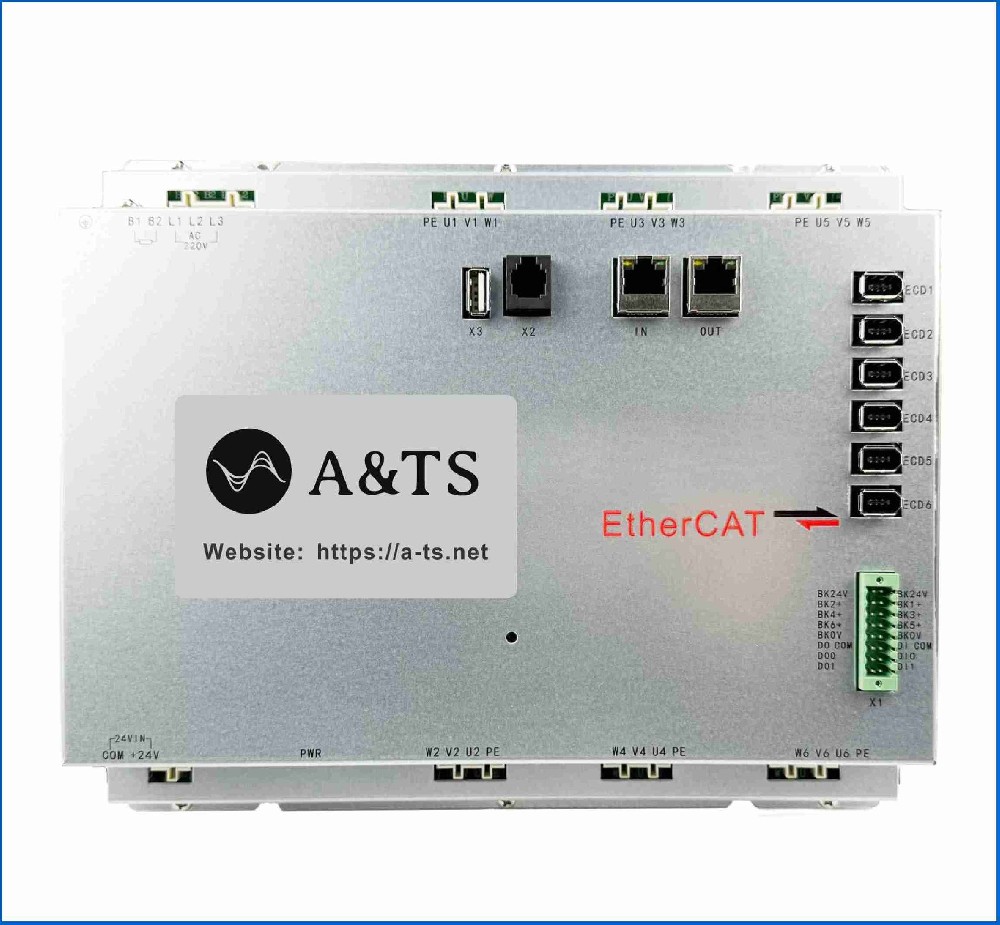

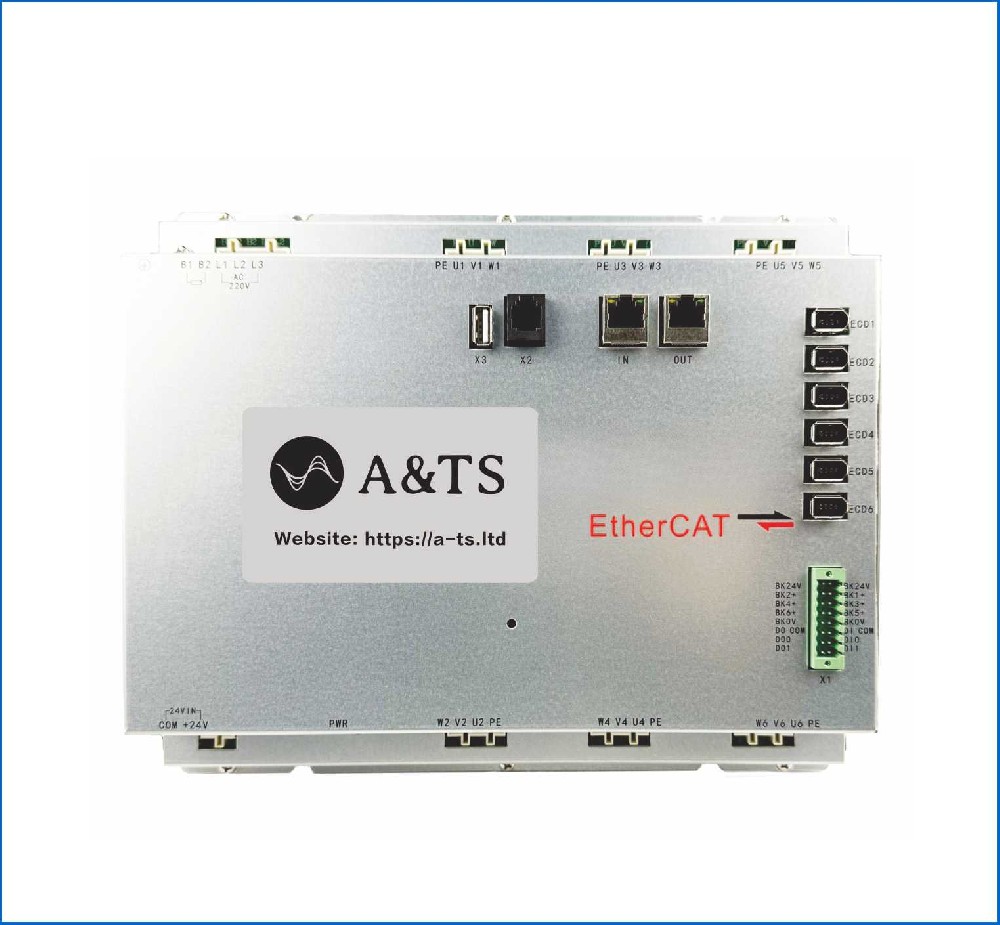

MT10-A6E 6-Axis Servo Controller (220V)

The MT series all-digital multi-axis AC servo controller is a multi-functional servo drive controller custom-designed for industrial applications.

1. With the main power supply supporting single-phase/three-phase AC 220V voltage, and the control power supply supporting DC 24V.

2. High-speed response, speed loop frequency response is over 2.0 kHz, and hardware current loop update time is up to 2 µs.

3. Supports the EtherCAT industrial fieldbus interface control.

4. Supports Tamagawa, Panasonic, Biss-C, EnDat, Nikon absolute encoder, magnetoelectric encoder, and the resolution can be up to 25bit.

5. Supports RM series standard servo motors and user-defined servo motors.
